UAC KT6101A

Product Details Attribute

Features & Benefits:

This compressor is Prefilled with OE-Specified Oil

A/C Compressor and A/C Condenser are 100% tested for long life and proper performance

A/C Condenser has an anti-corrosive paint layer designed to resist damage and aging

Benefits of an A/C Compressor & Component Kit
Purchasing and replacing just the A/C Compressor is less expensive up-front, but may lead to more repairs and expenses down the road. A complete A/C Compressor & Component Kit provides added benefits:

Extend Service Life: Brand new components, free of contaminants help protect your new A/C Compressor from premature failure.

Why Replace the A/C Condenser? 1996 and newer A/C Condenser designs are difficult (often impossible) to thoroughly flush, because of their small, multi-pass tube construction. A partially clogged / contaminated A/C Condenser can force your new compressor to work harder, and lead to premature failure.

Fulfill Warranty Requirements: A/C Compressors returned under warranty must show proof of purchase of the A/C Orifice Tube (or A/C Expansion Valve) and A/C Receiver Drier / Accumulator.

Save Time & Money: Don't risk having to re-do the repair - do the job right the first time!

Service Tip: Once filled with oil, place or hold the new A/C Compressor with the front seal facing down for 1-3 minutes. This will help coat the seal with oil - if this seal is not lubricated before installation, refrigerant may leak.

UAC CO29221C Prefilled w/ OE-Specified Oil Info
7SBU17C Style
UAC CN3738PFXC Parallel Flow Info

UAC RO0900B PAG 46 (R-134a) Oil; 8 oz. Info

UAC RS2647 Rapid Seal Oring Kit Info

UAC EX10672C Block Expansion Valve Info

Quantity Components that come in this kit

1 A/C Compressor

UAC CO29221C

1 A/C Condenser

UAC CN3738PFXC

1 A/C Refrigerant Oil

UAC RO0900B

1 A/C System O-Rings / Seals

UAC RS2647

1 A/C Expansion Valve

UAC EX10672C

Helpful Tools (not included): Disposable Gloves | Safety Glasses / Mask | A/C System Flush | A/C System Flush Gun | A/C Leak Detection Kit | Clutch Spanner Wrench | A/C Orifice Tube Remover / Installer | A/C Vacuum Pump | A/C Manifold Gauge Set | A/C Refrigerant Can Tap
Which A/C Compressor Do I Need?

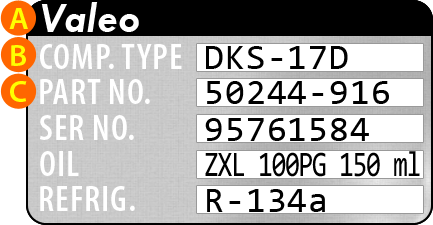

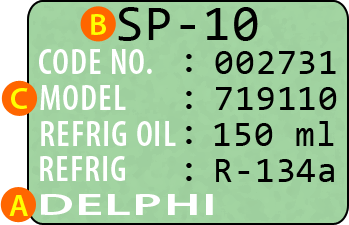

Certain vehicles came with multiple compressor styles. You can only replace your current compressor with the same style compressor. Locate the tag on the back or side of your existing compressor. Look for information like Manufacturer Name, Compressor Type / Style, and Model Number / Part Number.

Additional Resources

A/C Compressor Failure
Installation Instructions
Tech Tip: Why Should You Replace Your A/C Condenser?

Alternate/OEM Part Number(s)

OEM / Interchange Numbers: 64529154070, 64529217868, 64529399060

Warranty Information

UAC Warranty Information:12 months. IMPORTANT A/C COMPRESSOR WARRANTY NOTE: All compressors returned for defect must show proof of purchase of an A/C Orifice Tube (or A/C Expansion Valve), A/C Receiver Drier/Accumulator, and A/C System Flush or a Work Order showing the purchase of these items and that the system was flushed.

CAPA CERTIFIED or NSF CERTIFIED

CAPA Certified or NSF Certified parts bear the seal of independent, third party organizations guaranteeing fitment and quality equal to original equipment. These parts may be required if your insurance company is paying for the repair.

Specifications
[A/C Compressor] - Clocking	12
[A/C Compressor] - Control Valve (Y/ N)	Y
[A/C Compressor] - Diode (Y/ N)	Y
[A/C Compressor] - Discharge Port (MM)	16
[A/C Compressor] - Gauge Line (MM)	63
[A/C Compressor] - Grooves	8
[A/C Compressor] - Pulley Diameter (MM)	110
[A/C Compressor] - Style	7SBU17C
[A/C Compressor] - Suction Port (MM)	28
[A/C Compressor] - Voltage	12
[A/C Expansion Valve] - Suction Outlet (MM)	18
[A/C Condenser] - Depth (MM)	16
[A/C Condenser] - Fin Height (MM)	8
[A/C Condenser] - Height (MM)	464
[A/C Condenser] - Inlet (MM)	15.5
[A/C Condenser] - Outlet (MM)	14
[A/C Condenser] - Width (MM)	625
