FOUR SEASONS TSN5202

Product Details Attribute

Features & Benefits:

This compressor is Prefilled with 3 oz. of OE-Specified Oil

Refer to Four Seasons' Capacity Guide, vehicle's Underhood Decal or Service Manual for system oil requirements - add or drain oil accordingly, to ensure proper lubrication.

Each Compressor is 100% vacuum and leak tested for long life and proper performance

Includes required o-rings / sealing washer for ease of installation

Benefits of an A/C Compressor & Component Kit
Purchasing and replacing just the A/C Compressor is less expensive up-front, but may lead to more repairs and expenses down the road. A complete A/C Compressor & Component Kit provides added benefits:

Extend Service Life: Brand new components, free of contaminants help protect your new A/C Compressor from premature failure.

Fulfill Warranty Requirements: A/C Compressors returned under warranty must show proof of purchase of the A/C Orifice Tube (or A/C Expansion Valve) and A/C Receiver Drier / Accumulator.

Save Time & Money: Don't risk having to re-do the repair - do the job right the first time!

Service Tip: Once filled with oil, place or hold the new A/C Compressor with the front seal facing down for 1-3 minutes. This will help coat the seal with oil - if this seal is not lubricated before installation, refrigerant may leak.

FOUR SEASONS 198367 Prefilled w/ OE-Specified Oil Info
w/ 7SEU17C Compressor
FOUR SEASONS 83086 Desiccant Bag Info
w/o Plug
FOUR SEASONS 39399 Info
To 4/16

Quantity Components that come in this kit

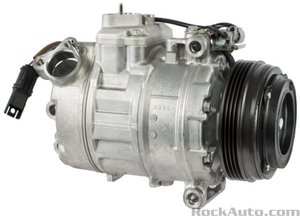

1 A/C Compressor

FOUR SEASONS 198367

1 A/C Receiver Drier Desiccant Element

FOUR SEASONS 83086

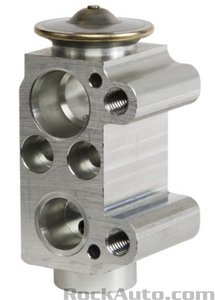

1 A/C Expansion Valve

FOUR SEASONS 39399

Helpful Tools (not included): Disposable Gloves | Safety Glasses / Mask | A/C System Flush | A/C System Flush Gun | A/C Leak Detection Kit | Clutch Spanner Wrench | A/C Orifice Tube Remover / Installer | A/C Vacuum Pump | A/C Manifold Gauge Set | A/C Refrigerant Can Tap
Which A/C Compressor Do I Need?
Certain vehicles came with multiple compressor styles. You can only replace your current compressor with the same style compressor. Locate the tag on the back or side of your existing compressor. Look for information like Manufacturer Name, Compressor Type / Style, and Model Number / Part Number.

Videos

Hose Assembly Replacement Consideration Quick Tip

Compressor Lubrication Tips

Additional Resources

Compressor Break Away Torque
Why Clean or Change the Expansion Valve?
Installation Instructions

Alternate/OEM Part Number(s)

OEM / Interchange Numbers: 64509154072, 64529195978, 64529399061, TSR5202

Warranty Information

Warranty Information:Compressors 2 years/24,000 miles. Commercial, heavy duty, or fleet use - Compressors 12 month. IMPORTANT A/C COMPRESSOR WARRANTY NOTE: In order to ensure that proper warranty credit is issued if needed, the compressor installation instructions must be adhered to. All compressors returned for defect must show proof of purchase of an A/C Orifice Tube (or A/C Expansion Valve), A/C Receiver Drier/Accumulator, and A/C System Flush or a Work Order showing the purchase of these items and that the system was flushed.

CAPA CERTIFIED or NSF CERTIFIED

CAPA Certified or NSF Certified parts bear the seal of independent, third party organizations guaranteeing fitment and quality equal to original equipment. These parts may be required if your insurance company is paying for the repair.

Specifications
[A/C Compressor] - Clutch Included	Included
[A/C Compressor] - Coil Clock Position	1 Wire Lead
[A/C Compressor] - Coil Voltage	12 2H
[A/C Compressor] - Compatible Refrigerant Oil Type	PAG 46
[A/C Compressor] - Compressor Type	7SBU17C
[A/C Compressor] - ECV Harness Connector	Compressor SE05F, Vehicle SE22M
[A/C Compressor] - Mounting Type	Tangent Mount
[A/C Compressor] - Oil Filled	Yes
[A/C Compressor] - Printed Foot Note	May Require use of OE Manifold
[A/C Compressor] - Pulley Belt Type	Serpentine
[A/C Compressor] - Pulley Groove Quantity	4
[A/C Compressor] - Refrigerant Type	R134a
[A/C Compressor] - Terminal Type	Pin
[A/C Compressor] - Type	Nippondenso
[A/C Expansion Valve] - Liquid Inlet Size IN	0.540 IN
[A/C Expansion Valve] - Liquid Out Size IN	0.600 IN
[A/C Expansion Valve] - Material	Aluminum
[A/C Expansion Valve] - Style	w/o Solenoid
[A/C Expansion Valve] - Suc In Size IN	0.710 in
[A/C Expansion Valve] - Suc Out Size IN	0.710 in
[A/C Expansion Valve] - Super Heat	-1.500
[A/C Expansion Valve] - Switch Included?	Not Included
[A/C Expansion Valve] - Tonnage	2.000
[A/C Receiver Drier Desiccant Element] - Color	White
[A/C Receiver Drier Desiccant Element] - Desiccant Length IN	9.6 IN
[A/C Receiver Drier Desiccant Element] - Gasket Or Seal Included	Included
[A/C Receiver Drier Desiccant Element] - Material	Cloth
[A/C Receiver Drier Desiccant Element] - Outside Diameter	1.000 in
[A/C Receiver Drier Desiccant Element] - Style	Desiccant
