DELPHI TD5616W

Thanks to their good damping properties and excellent load carrying capabilities, Delphi Technologies bushings absorb unwanted vibrations and sound, providing a comfortable and quiet ride, as well as improving vehicle stability and safety.

Since bushings are subject to high dynamic stresses day-in, day-out, Delphi Technologies only ever uses the highest quality materials. By carefully balancing the precise quantities of steel and rubber, Delphi Technologies bushings provide the optimum combination of strength, flexibility and noise reduction, tailored to the application they fit.

How To Determine Stabilizer (Sway) Bar Diameter

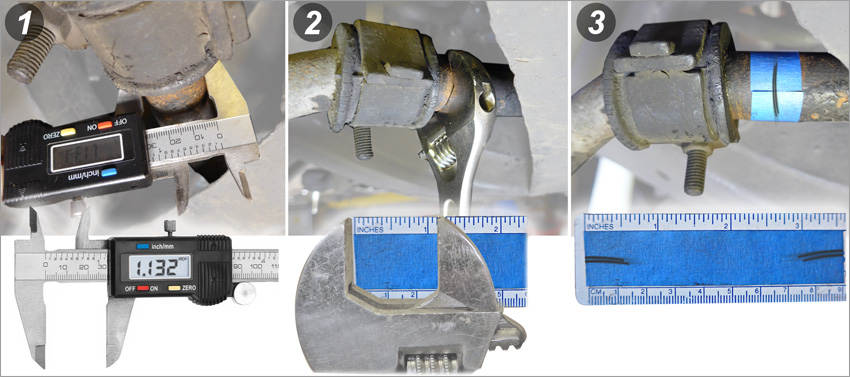

To determine Stabilizer (Sway) Bar diameter, measure the bar next to the bushing (toward the center of the vehicle), utilizing one of the methods below.

1. Use a digital caliper or micrometer for a precise reading
2. Use an open end wrench that fits snug around the bar, or tighten an adjustable wrench around the bar, and then measure the span opening
3. Wrap a piece of non-stretchable tape (like masking tape) around the bar to get the circumference. Circumference divided by Pi (3.14) = Diameter. In the example below, the tape measured 3 5/8". 3 5/8 = 29/8 = 3.63 inches. Diameter = 3.63/3.14 = 1.15 inches.

Warranty Information:Limited Lifetime

CAPA Certified or NSF Certified parts bear the seal of independent, third party organizations guaranteeing fitment and quality equal to original equipment. These parts may be required if your insurance company is paying for the repair.
