ACDELCO 45F2079

Product Details Attribute

Features:

Bushing design features excellent abrasion, wear resistance, extreme temperature tolerance, and resistance to oils and fluids

Corrosion-resistant coating

Resistance to extreme temperatures, oils and abrasion

Premium aftermarket replacement part

Sway Bar Bushing diameter can be within 1mm of your Sway Bar diameter. The clamping force of the bracket will account for the variance.

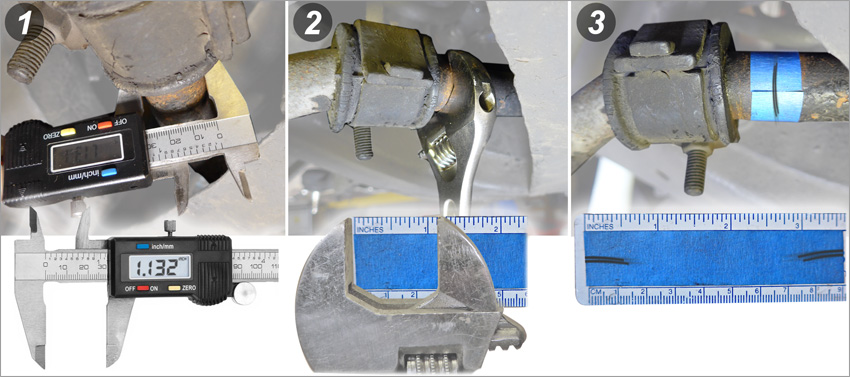

How To Determine Stabilizer (Sway) Bar Diameter
To determine Stabilizer (Sway) Bar diameter, measure the bar next to the bushing (toward the center of the vehicle), utilizing one of the methods below.

Use a digital caliper or micrometer for a precise reading

Use an open end wrench that fits snug around the bar, or tighten an adjustable wrench around the bar, and then measure the span opening

Wrap a piece of non-stretchable tape (like masking tape) around the bar to get the circumference. Circumference divided by Pi (3.14) = Diameter. In the example below, the tape measured 3 5/8". 3 5/8 = 29/8 = 3.63 inches. Diameter = 3.63/3.14 = 1.15 inches.

ACDelco Quality
ACDelco breaks down their premium portfolio of Original Equipment and Aftermarket parts into two tiers: GM Original Equipment and ACDelco Gold.

GM ORIGINAL EQUIPMENT

GM Original Equipment parts are the true OE parts installed during production or validated by GM—designed, engineered, and tested to rigorous standards and backed by General Motors.

ACDELCO GOLD (PROFESSIONAL)

ACDelco Gold parts are the high-quality alternative to OE parts, manufactured to meet GM expectations for fit, form, and function and backed by General Motors.

Alternate/OEM Part Number(s)

{Alternate Inventory Numbers: 19365620, 19464894}

Warranty Information

Warranty Information:Limited Lifetime as long as original purchaser owns vehicle.Warranty Details

CAPA CERTIFIED or NSF CERTIFIED

CAPA Certified or NSF Certified parts bear the seal of independent, third party organizations guaranteeing fitment and quality equal to original equipment. These parts may be required if your insurance company is paying for the repair.

Specifications
Mounting Hardware Included	No
