FOUR SEASONS 2945NK

Product Details Attribute

Features & Benefits:

This compressor is prefilled with 3 oz. of OE-Specified oil and includes an additional 8 oz. bottle of oil

Refer to Four Seasons' Capacity Guide, vehicle's Underhood Decal or Service Manual for system oil requirements - add or drain oil accordingly, to ensure proper lubrication.

100% vacuum and leak tested for long life and proper performance

Includes required o-rings / sealing washer for ease of installation

Benefits of an A/C Compressor & Component Kit
Purchasing and replacing just the A/C Compressor is less expensive up-front, but may lead to more repairs and expenses down the road. A complete A/C Compressor & Component Kit provides added benefits:

Extend Service Life: Brand new components, free of contaminants help protect your new A/C Compressor from premature failure.

Fulfill Warranty Requirements: A/C Compressors returned under warranty must show proof of purchase of the A/C Orifice Tube (or A/C Expansion Valve) and A/C Receiver Drier / Accumulator.

Save Time & Money: Don't risk having to re-do the repair - do the job right the first time!

Service Tip: Once filled with oil, place or hold the new A/C Compressor with the front seal facing down for 1-3 minutes. This will help coat the seal with oil - if this seal is not lubricated before installation, refrigerant may leak.
Helpful Tools (not included): Disposable Gloves | Safety Glasses / Mask | A/C System Flush | A/C System Flush Gun | A/C Leak Detection Kit | Clutch Spanner Wrench | A/C Orifice Tube Remover / Installer | A/C Vacuum Pump | A/C Manifold Gauge Set | A/C Refrigerant Can Tap
Which A/C Compressor Do I Need?

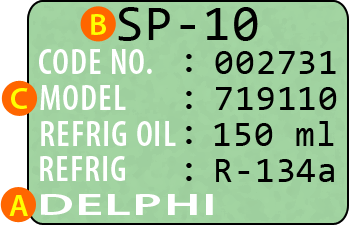

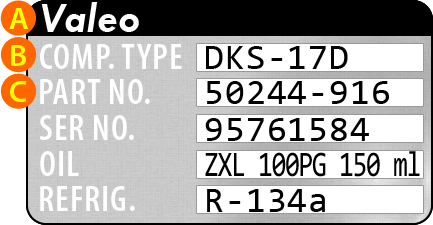

Certain vehicles came with multiple compressor styles. You can only replace your current compressor with the same style compressor. Locate the tag on the back or side of your existing compressor. Look for information like Manufacturer Name, Compressor Type / Style, and Model Number / Part Number.

Videos

Hose Assembly Replacement Consideration Quick Tip

Compressor Lubrication Tips

Additional Resources

Compressor Break Away Torque
Why Clean or Change the Expansion Valve?
Installation Instructions

Attention California Customers - WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.

Alternate/OEM Part Number(s)

OEM / Interchange Numbers: TSN1896, TSR1896

Warranty Information

Warranty Information:Light Duty Vehicles: Limited Lifetime; Heavy Duty Vehicles: 3 Years/300,000 Miles, Non-Transferable. IMPORTANT A/C COMPRESSOR WARRANTY NOTE: In order to ensure that proper warranty credit is issued if needed, the compressor installation instructions must be adhered to. All compressors returned for defect must show proof of purchase of an A/C Orifice Tube (or A/C Expansion Valve), A/C Receiver Drier/Accumulator, and A/C System Flush or a Work Order showing the purchase of these items and that the system was flushed.

CAPA CERTIFIED or NSF CERTIFIED

CAPA Certified or NSF Certified parts bear the seal of independent, third party organizations guaranteeing fitment and quality equal to original equipment. These parts may be required if your insurance company is paying for the repair.

Specifications
Type	Complete Air Conditioning Kit w/ New Compressor
Refrigerant Type	R134a
Compressor Oil Included	Included
Compressor Oil Type	PAG 46 Oil/R134a
Expansion Device Type	Block Type
Expansion Valve Inlet Type	Insert O-Ring
Expansion Valve Outlet Type	Insert O-Ring
Gasket / Seals?	Included
Kit Includes	78396 (New Compressor), 83070 (Filter Drier), 38686 (Exp Valve), 59007 (Oil), O-Rings
Receiver Drier/Accumulator Diameter (IN)	2.500
Receiver Drier/Accumulator Inlet Fitting Type	Pad Mount
Receiver Drier/Accumulator Length (IN)	6.500
Receiver Drier/Accumulator Outlet Fitting Size (IN)	.543
Receiver Drier/Accumulator Outlet Fitting Type	Pad Mount
