Benefits of an A/C Compressor & Component KitPurchasing and replacing just the A/C Compressor is less expensive up-front, but may lead to more repairs and expenses down the road. A complete A/C Compressor & Component Kit provides added benefits:
|
||||||||||||||||||||||||||||||||||
Certain vehicles came with multiple compressor styles. You can only replace your current compressor with the same style compressor.

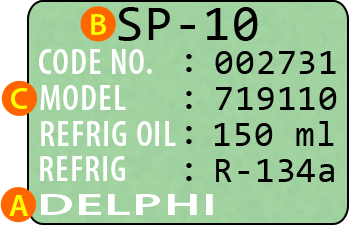

Locate the tag on the back or side of your existing compressor. Look for information like
Manufacturer Name,
Compressor Type / Style, and
Model Number / Part Number.
Videos
Additional ResourcesWarranty Information:Compressors 2 years/24,000 miles. Commercial, heavy duty, or fleet use - Compressors 12 month. IMPORTANT A/C COMPRESSOR WARRANTY NOTE: In order to ensure that proper warranty credit is issued if needed, the compressor installation instructions must be adhered to. All compressors returned for defect must show proof of purchase of an A/C Orifice Tube (or A/C Expansion Valve), A/C Receiver Drier/Accumulator, and A/C System Flush or a Work Order showing the purchase of these items and that the system was flushed.
CAPA Certified or NSF Certified parts bear the seal of independent, third party organizations guaranteeing fitment and quality equal to original equipment. These parts may be required if your insurance company is paying for the repair.
| Specifications | |

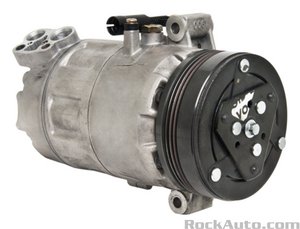

| [A/C Compressor] - Clutch Included | Included |
| [A/C Compressor] - Coil Clock Position | 1 Wire Lead |
| [A/C Compressor] - Coil Voltage | 12 2H |
| [A/C Compressor] - Compatible Refrigerant Oil Type | PAG 46 |
| [A/C Compressor] - Compressor Type | CSV613 |
| [A/C Compressor] - Mounting Type | Tangent Mount |
| [A/C Compressor] - Oil Filled | Yes |
| [A/C Compressor] - Pulley Belt Type | Serpentine |
| [A/C Compressor] - Pulley Groove Quantity | 4 |
| [A/C Compressor] - Refrigerant Type | R134a |
| [A/C Compressor] - Terminal Type | Pin |
| [A/C Compressor] - Type | Nihon/Calsonic |

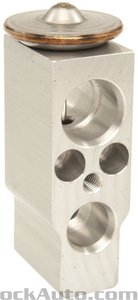

| [A/C Expansion Valve] - Liquid Inlet Size IN | 0.540 IN |
| [A/C Expansion Valve] - Liquid Out Size IN | 0.61 IN |
| [A/C Expansion Valve] - Material | Aluminum |
| [A/C Expansion Valve] - Style | w/o Solenoid |
| [A/C Expansion Valve] - Suc In Size IN | 0.72 IN |
| [A/C Expansion Valve] - Suc Out Size IN | 0.710 in |
| [A/C Expansion Valve] - Super Heat | -2.000 |
| [A/C Expansion Valve] - Switch Included? | Not Included |
| [A/C Expansion Valve] - Tonnage | 1.0 |
| [A/C Receiver Drier / Accumulator] - Body Diameter | 2.500 in |
| [A/C Receiver Drier / Accumulator] - Body Length | 6.500 in |
| [A/C Receiver Drier / Accumulator] - Connector B Type | Pad Mount |
| [A/C Receiver Drier / Accumulator] - Connector Type | Pad Mount |
| [A/C Receiver Drier / Accumulator] - Desiccant | Yes |
| [A/C Receiver Drier / Accumulator] - Gasket / Seals? | Included |
| [A/C Receiver Drier / Accumulator] - In Line Filter Material | Desiccant |
| [A/C Receiver Drier / Accumulator] - Material | Aluminum |
| [A/C Receiver Drier / Accumulator] - Mounting Bracket Included | Not Included |
| [A/C Receiver Drier / Accumulator] - Outlet Fraction | 9/16 in |
| [A/C Receiver Drier / Accumulator] - Outlet IN | .543 in |
| [A/C Receiver Drier / Accumulator] - Overall Depth IN | 6.500 in |
| [A/C Receiver Drier / Accumulator] - Pad Mount | w/ Pad Mount |
| [A/C Receiver Drier / Accumulator] - Service Port? | w/o Service Port |
| [A/C Receiver Drier / Accumulator] - Sight Glass? | No |
| [A/C Receiver Drier / Accumulator] - Style | Aluminum Filter Drier w/ Pad Mount |
| [A/C Receiver Drier / Accumulator] - Switch Port? | w/o Switch Port |
