FOUR SEASONS 98349

Product Details Attribute

Features & Benefits:

This compressor is Prefilled with 3 oz. of OE-Specified Oil

Refer to Four Seasons' Capacity Guide, vehicle's Underhood Decal or Service Manual for system oil requirements - add or drain oil accordingly, to ensure proper lubrication.

100% vacuum and leak tested for long life and proper performance

Includes required o-rings / sealing washer for ease of installation

Which A/C Compressor Do I Need?

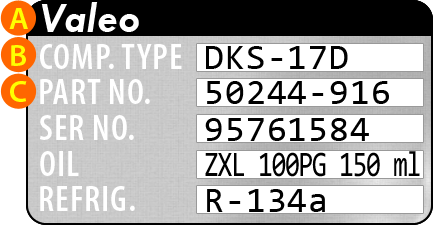

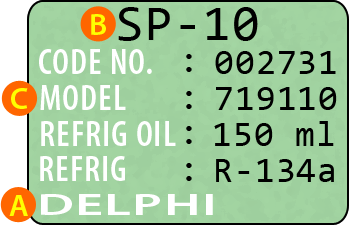

Certain vehicles came with multiple compressor styles. You can only replace your current compressor with the same style compressor. Locate the tag on the back or side of your existing compressor. Look for information like Manufacturer Name, Compressor Type / Style, and Model Number / Part Number.

A/C System Repair - Do it Right the First Time!
A successful A/C Compressor repair requires more than just the compressor! Always flush the system and replace the small components that cannot be flushed -- A/C Expansion Valve (or A/C Orifice Tube) and A/C Receiver Drier / Accumulator (or A/C Receiver Drier Desiccant Element) -- to prevent old contaminants from damaging your new compressor. Replacement of these components is often required to satisfy a manufacturer warranty claim.
Helpful Tools: Disposable Gloves | Safety Glasses / Mask | A/C System Flush | A/C System Flush Gun | A/C Leak Detection Kit | Clutch Spanner Wrench | A/C Vacuum Pump | A/C Manifold Gauge Set | A/C Refrigerant Can Tap
Service Tip: Once filled with oil, place or hold the new A/C Compressor with the front seal facing down for 1-3 minutes. This will help coat the seal with oil - if this seal is not lubricated before installation, refrigerant may leak.
Videos

Hose Assembly Replacement Consideration Quick Tip

Proper Compressor Installation to Prevent Premature Failure (Video)

Compressor Lubrication Tips

Additional Resources

The 10S and V5 Difference
Compressor Break Away Torque
Why Clean or Change the Expansion Valve?
Installation Instructions

Attention California Customers - WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.

Alternate/OEM Part Number(s)

OEM / Interchange Numbers: 64526921650, 64529121748, 97349, JPB000110, LR012793

Warranty Information

Warranty Information:Compressors 2 years/24,000 miles. Commercial, heavy duty, or fleet use - Compressors 12 month. IMPORTANT A/C COMPRESSOR WARRANTY NOTE: In order to ensure that proper warranty credit is issued if needed, the compressor installation instructions must be adhered to. All compressors returned for defect must show proof of purchase of an A/C Orifice Tube (or A/C Expansion Valve), A/C Receiver Drier/Accumulator, and A/C System Flush or a Work Order showing the purchase of these items and that the system was flushed.

CAPA CERTIFIED or NSF CERTIFIED

CAPA Certified or NSF Certified parts bear the seal of independent, third party organizations guaranteeing fitment and quality equal to original equipment. These parts may be required if your insurance company is paying for the repair.

Specifications
Type	Nippondenso
Mount Type	Tangent Mount
Connector Type	Pin
Refrigerant Type	R134a
Mounting Hardware?	Not Included
Oil Type	PAG 46
Belt Type	Serpentine
Pulley Diameter (MM)	109.53
Clutch Included	Included
Coil Voltage	12
New or Reman	New
Coil Clock	1 Wire Lead
Electronic Control Valve	No
Groove	5
Model	10S17C
Mount Distance (IN)	0.92
O-Ring A Number/Desc	24681 / Green O-Ring
O-Ring A Quantity	1
O-Ring B Number/Desc	24661 / Green O-Ring
O-Ring B Quantity	1
Pulley Diameter (IN)	4.31
Part Note	May Require use of OE Manifold
Discharge Port Type	O-Ring
Suction Port Type	O-Ring
Mount Distance (MM)	23.37
